high current and low loss 38L361C flat coil wound power inductors

Name: high current and low loss 38L361C flat coil wound power inductors
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : 38L361C

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 550pcs/reel

Product name : high current and low loss 38L361C flat coil wound power inductors

Size : 10.4*10.4*5.6mm

Inductance : 0.36 ±30% μH

DC Current : 18A

Saturation Current : 27A

Sample : free

Contact Now

high current and low loss 38L361C flat coil wound power inductors

FEATURES:

RoHS compliant
High current, low DCR
Surface mount
UL94 V-0 package materials
Pick & place compatible
J-STD-020D reflow
Backward compatible with Sn/Pb soldering systems

The 3800 series is a range of surface mount, flat
coil wound power inductors that is designed for
use where high current and low loss is essential,
such as in laptop computers and plasma screens.

Part number	Inductance (100kHz, 0.1VAC)	DC Current	Saturation Current	DC Resistance
	±10%	Max.	Typ.	Max.
	μH	A	A	mΩ
38L361C	0.36 ±30%	18	27	1.8
38L801C	0.80	16	20	2.5
38L142C	1.40	12.0	15	3.7
38L222C	2.20	9.6	12	5
38L322C	3.20	7.8	10	6.8
38L432C	4.30	6.8	8.8	9.7
38L572C	5.70	5.8	7.3	11.9
38L722C	7.20	5.3	6.6	15.5
38L882C	8.80	4.8	5.9	19.6

high current and low loss 38L361C flat coil wound power inductors

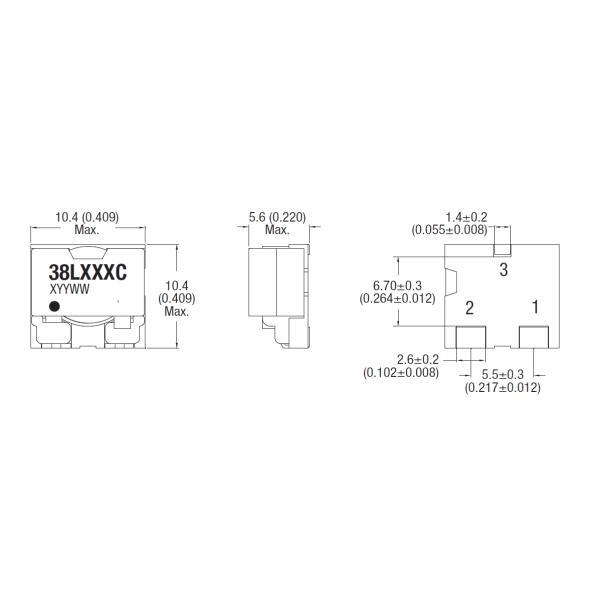

Shape and Dimensions:

high current and low loss 38L361C flat coil wound power inductors
